Mitsubishi Electric Air Conditioning MSY-TP35VF Cooling Wall 3.5Kw/12000Btu R32 A+++ Install Kit
This product is an air conditioning system and must be installed by an F-Gas registered engineer. We will require your engineer’s F-Gas certificate details before dispatch. Find out more about F-Gas regulations →
Overview
MSY-TP R32 High SHF Wall Mounted System Inverter Heat Pump (Cooling Only). Mitsubishi Electric’s range of computer room, R32, flat panel wall mounted models make use of inverter technology, whilst providing extremely good value for money.
The M Series MSY-TP R32 High SHF wall mounted system blends energy efficiency with a modern white design. This cooling only unit has a high sensible cooling capacity, making it ideal for small computer rooms or areas that require a greater degree of sensible cooling. The MSY-TP also utilises low GWP R32 refrigerant. Compact and stylish white design, High sensible cooling ability, Highly energy efficient, utilising low GWP R32 refrigerant, Built in connection to our optional Wi-Fi interface, enabling control and monitoring using a smart phone, tablet or PC via the MELCloud app Weekly timer provides greater control of scheduling,
Technical Specifications
| MSY-TP – INDOOR UNIT | MSY-TP35VF |
| CAPACITy (kW) Cooling (nominal) | 3.5 (1.5-4.0) |
| Cooling (UK) | 3.47 (1.48-3.96) |
| SHF (nominal) | 0.98 |
| EER (nominal) | 4.61 |
| SEER (BS EN14825) | 9.00 |
| ErP ENERGy EFFICIENCy CLASS Cooling | A+++ |
| AIRFLOW (l/s) Cooling – Lo-Mi-Hi-SHi | 168-193-228-273 |
| PIPE SIzE mm (in) Gas | 9.52 (3/8”) |
| Liquid | 6.35 (1/4”) |
| SOUND PRESSURE LEVEL (dBA) Cooling – Lo-Mi-Hi-SHi | 31-36-40-45 |
| SOUND POWER LEVEL (dBA) | 60 |

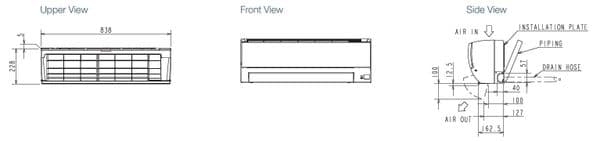

| DIMENSIONS (mm) Width x Depth x Height | 923 x 250 x 305 |
| WEIGHT (kg) | 12.5 |
| ELECTRICAL SUPPLy | 220-240v, 50Hz |
| FUSE RATING (BS88) – HRC (A) | 10 |
| INTERCONNECTING CABLE No. CORES | 4 |
| MUY-TP – OUTDOOR UNIT | MUY-TP35VF |
| SOUND PRESSURE LEVEL (dBA) Cooling | 45 |
| SOUND POWER LEVEL (dBA) Cooling | 58 |
| WEIGHT (kg) | 34 |
| DIMENSIONS (mm) Width x Depth x Height | 800 x 285 x 550 |
| ELECTRICAL SUPPLy | Fed by Indoor Unit |
| PHASE | Single |
| SySTEM POWER INPUT (kW) Cooling (nominal)
Cooling (UK) |
0.76
0.64 |
| STARTING CURRENT (A) | 3.6 |
| SySTEM RUNNING CURRENT (A) Cooling [MAX] | 3.6 [9.2] |
| FUSE RATING (BS88) – HRC (A) | 10 |
| MAINS CABLE No. CORES | 3 |
| MAX PIPE LENGTH (m) | 20 |
| MAX HEIGHT DIFFERENCE (m) | 12 |
| CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t)
– R32 (GWP 675) |
0.85 / 0.57 |
| MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t)
– R32 (GWP 675) |
0.13 / 0.09 |
What’s Included

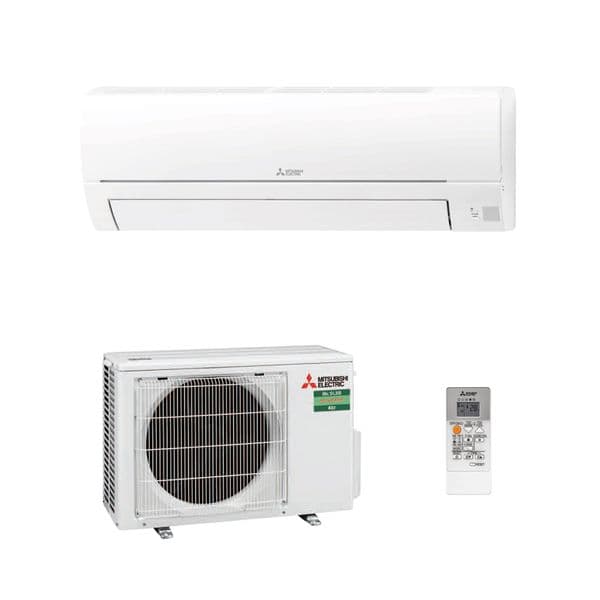

1 x MSY-TP35VF Cooling Wall Mounted R32 Indoor unit
1 x MUY-TP35VF R32 Outdoor unit
1 x IR remote control
15 Meters of 1/4″ & 3/8″ Pipes
15 Meters of cable for interconnecting cable
15 Meters of installation for pipes
1 X Pack of cable ties
1 x Premium Wall bracket for condensing unit
Installation & F-Gas
Key Features
High Seer, up to record 9
Advanced technology control
Infra-red controller
Slim construction
Pipe runs up to 20 metres
Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures
Auto re-start after power interruption
PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length
Easy cleaned & serviced.
Full ECA tax allowance
Wi-Fi interface now available with this model
Fault diagnosis
Cooling down to -25ºC outdoor air temperature.
Mitsubishi Electric Air Conditioning MSY-TP35VF Cooling Wall 3.5Kw/12000Btu R32 A+++ Install Kit
£1,482.23
